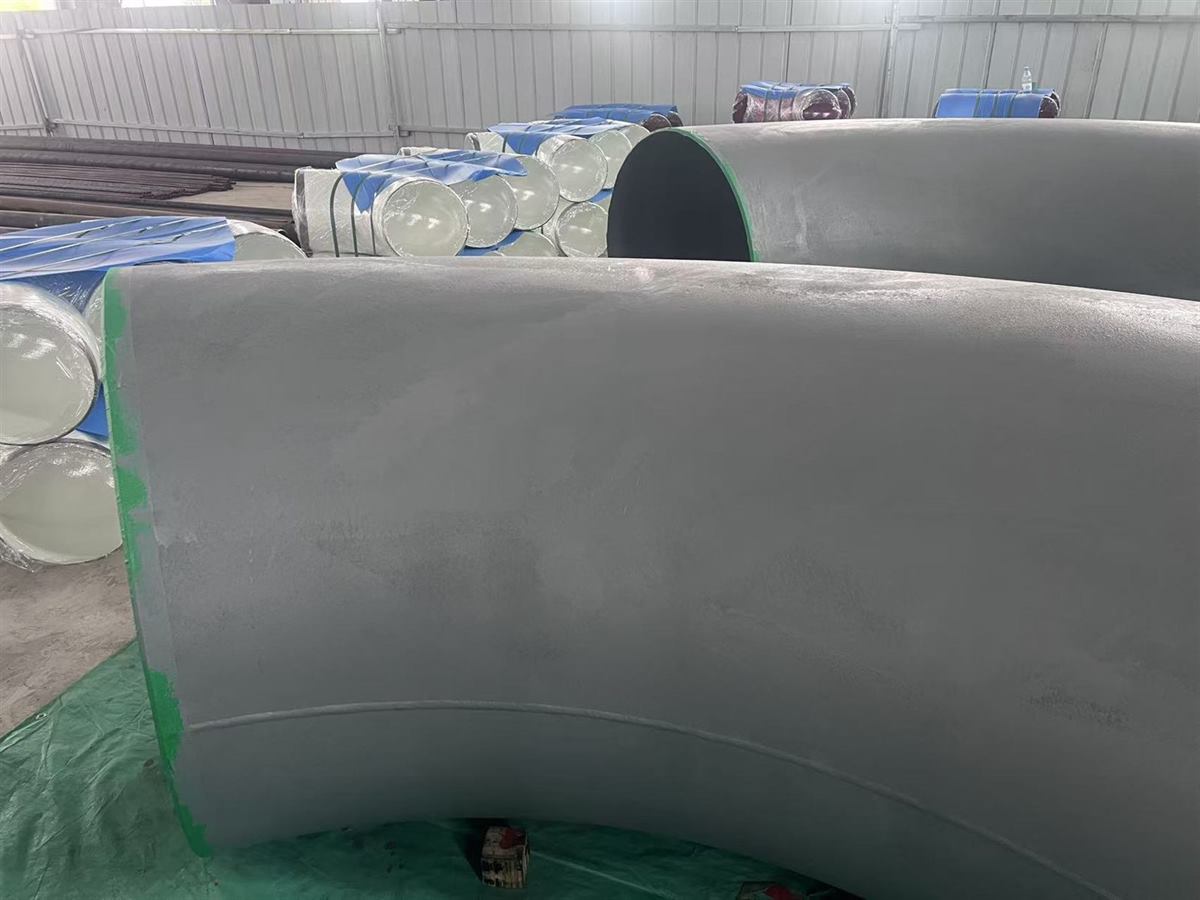

Large diameter butt-welding elbow

Butt-welding fittings, flanges and forged fittings

Forged and seamless fittings for oil, gas, chemical and water lines. Made to ASME, EN, DIN and JIS dimensions, inspected in our own works, and shipped with a material certificate for every batch.

Send sizes for a quote See the product range
Size range1/2" – 48" (DN15 – DN1200)
StandardsASME B16.9 / B16.5 / B16.11 / B16.47, EN 10253, EN 1092-1
MaterialsA234 WPB, A105, WPHY 52 / 70, 304 / 316 / 321
CertificateEN 10204 3.1 with every shipment
Product range

Seven families, one works

Sizes, standards and materials below are typical for each family. Mixed specifications and non-standard sizes are quoted on request.

Typical supply specification per family.
Family Sizes Standards Materials

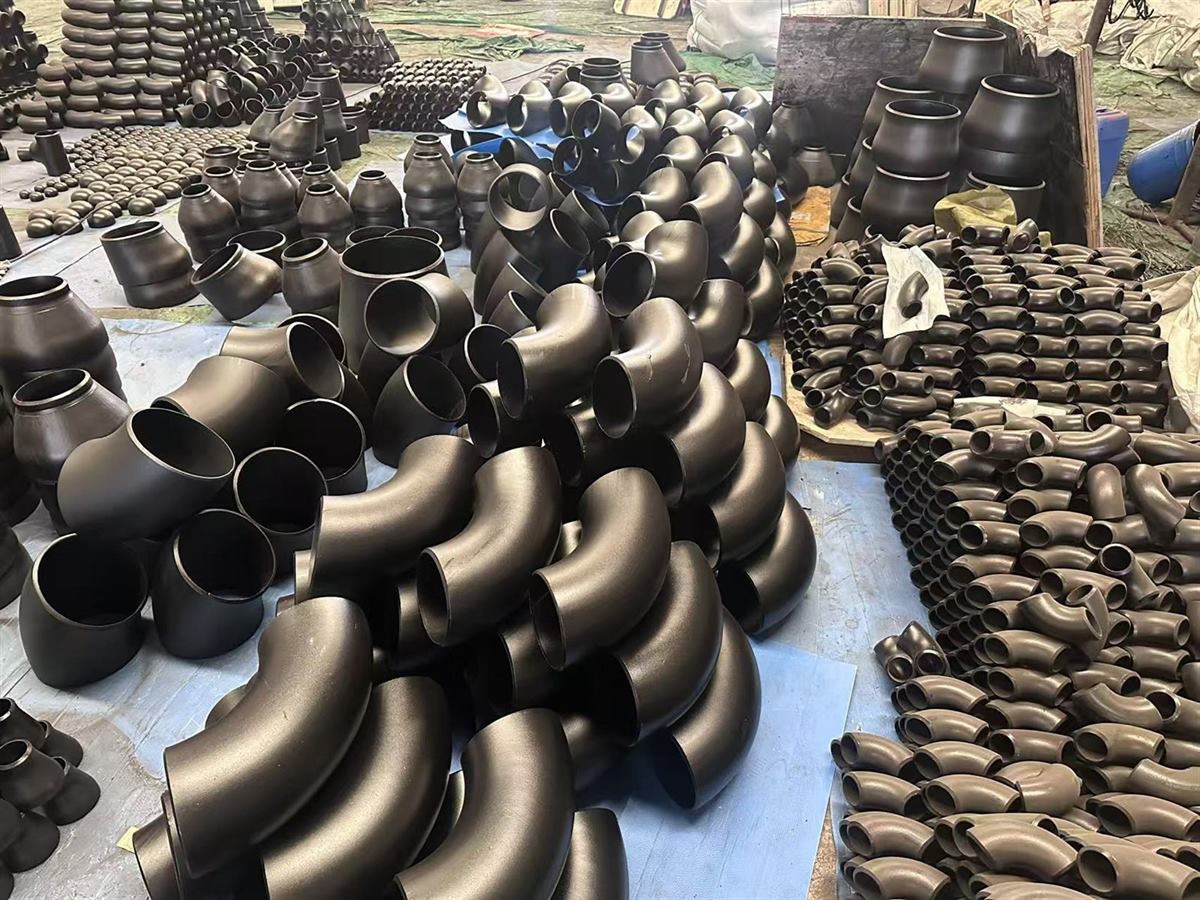

Carbon steel butt-welding elbow
Butt-welding fittings Elbows, bends, tees, laterals, crosses, reducers, caps, dished heads
1/2" – 48" ASME B16.9, MSS SP-75, EN 10253, GB/T 12459 A234 WPB, WPHY 52 / 70, A403 WP304 / 316

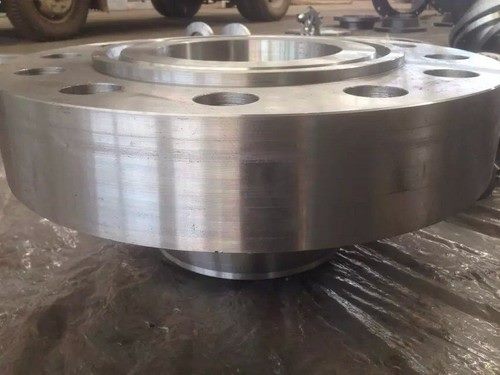

Weld neck flange
Flanges Weld neck, slip-on, blind, lapped, plate, threaded
Class 150 – 2500, PN6 – PN40 ASME B16.5 / B16.47, EN 1092-1, DIN, JIS, GB/T 9119 Q235, 20#, 16Mn, A105, F304 / F316

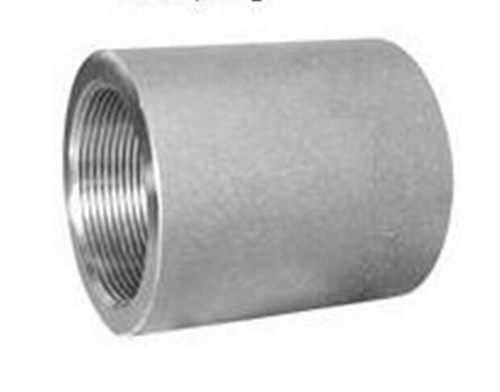

Forged socket-weld coupling
Forged fittings Socket-weld and threaded: elbow, tee, cross, coupling, cap, union, plug
1/8" – 4" ASME B16.11, 3000 LB / 6000 LB, SCH80 A105, F304, F316

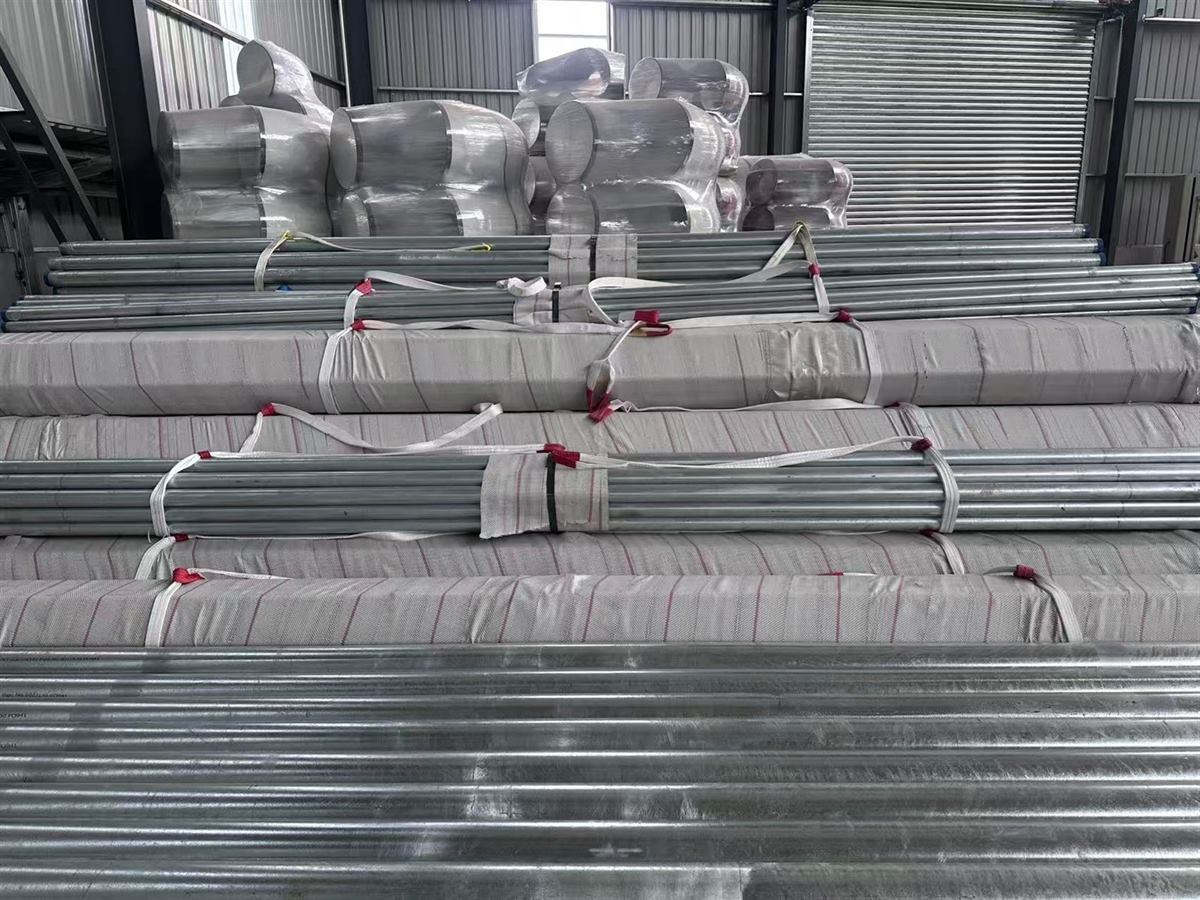

Hot-dip galvanized steel pipes
Steel pipes Seamless, welded, hot-dip galvanized
DN15 – DN2000 API 5L, ASTM A106 / A53 / A312, GB/T 9711 Carbon steel, stainless steel

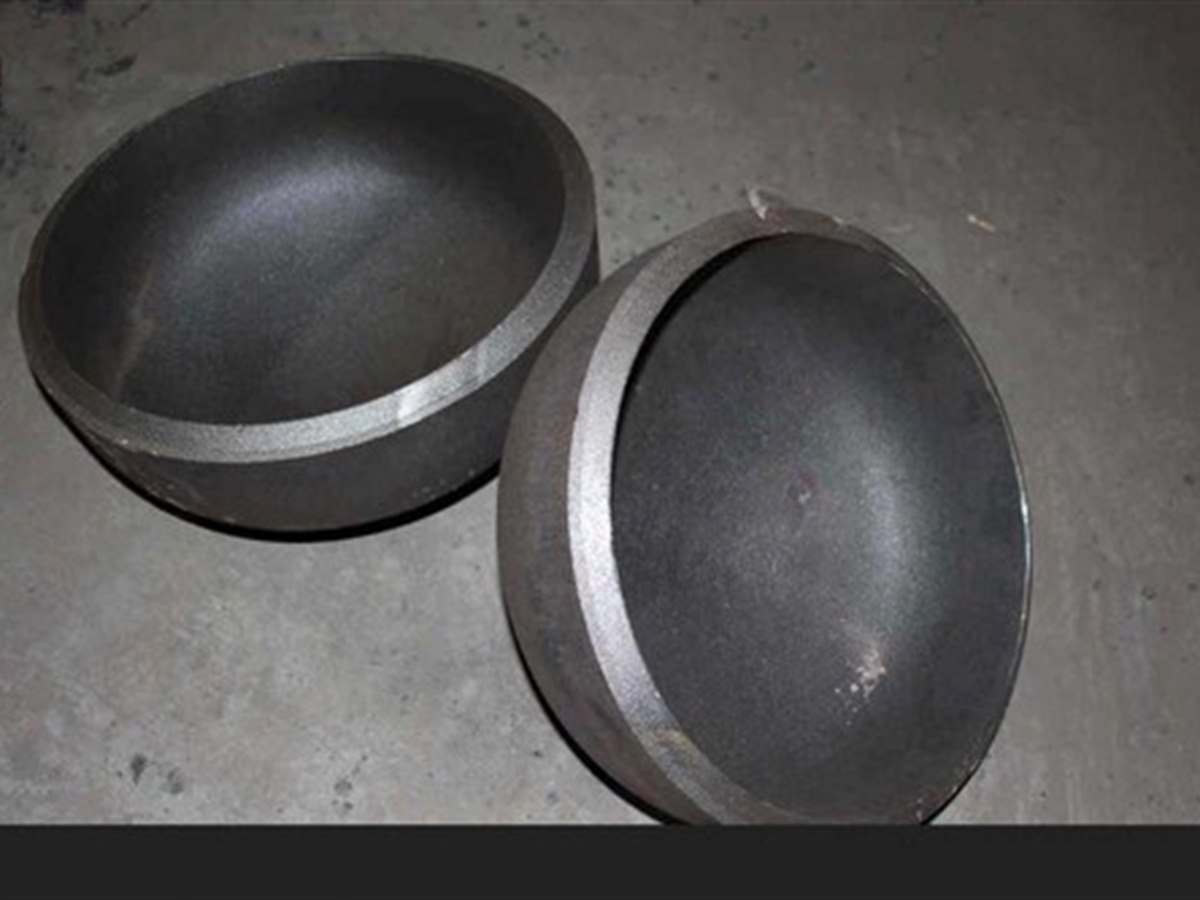

Dished heads made to drawing
Pipe caps Elliptical, torispherical, hemispherical, to drawing
To drawing ASME / GB tables or to drawing Carbon steel, stainless, alloy

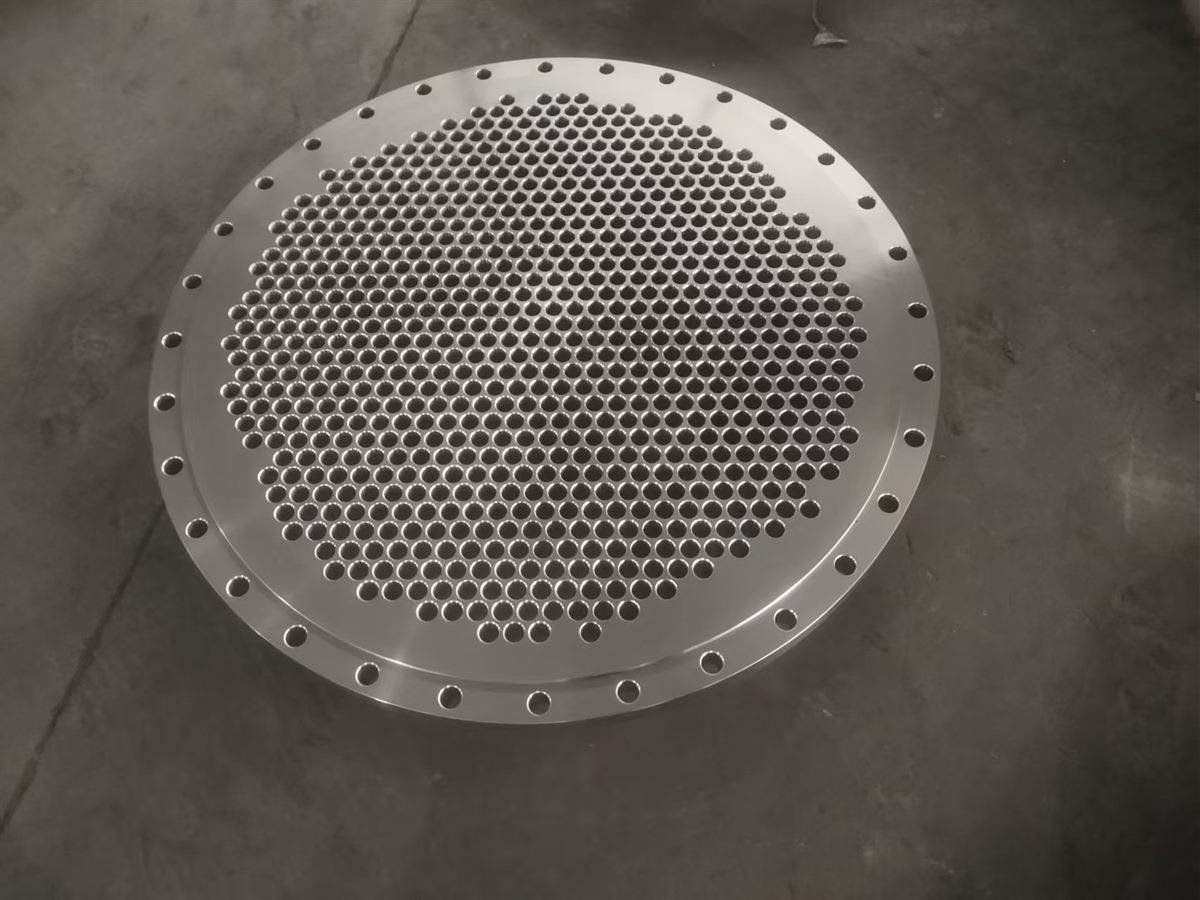

Tubesheet drilled to a customer drawing
Custom flange fabrication Tubesheets, blind and spacer plates, large hubs, drilled to drawing
To drawing To drawing, or ASME / EN dimensions with modified details Carbon steel, stainless, alloy steel

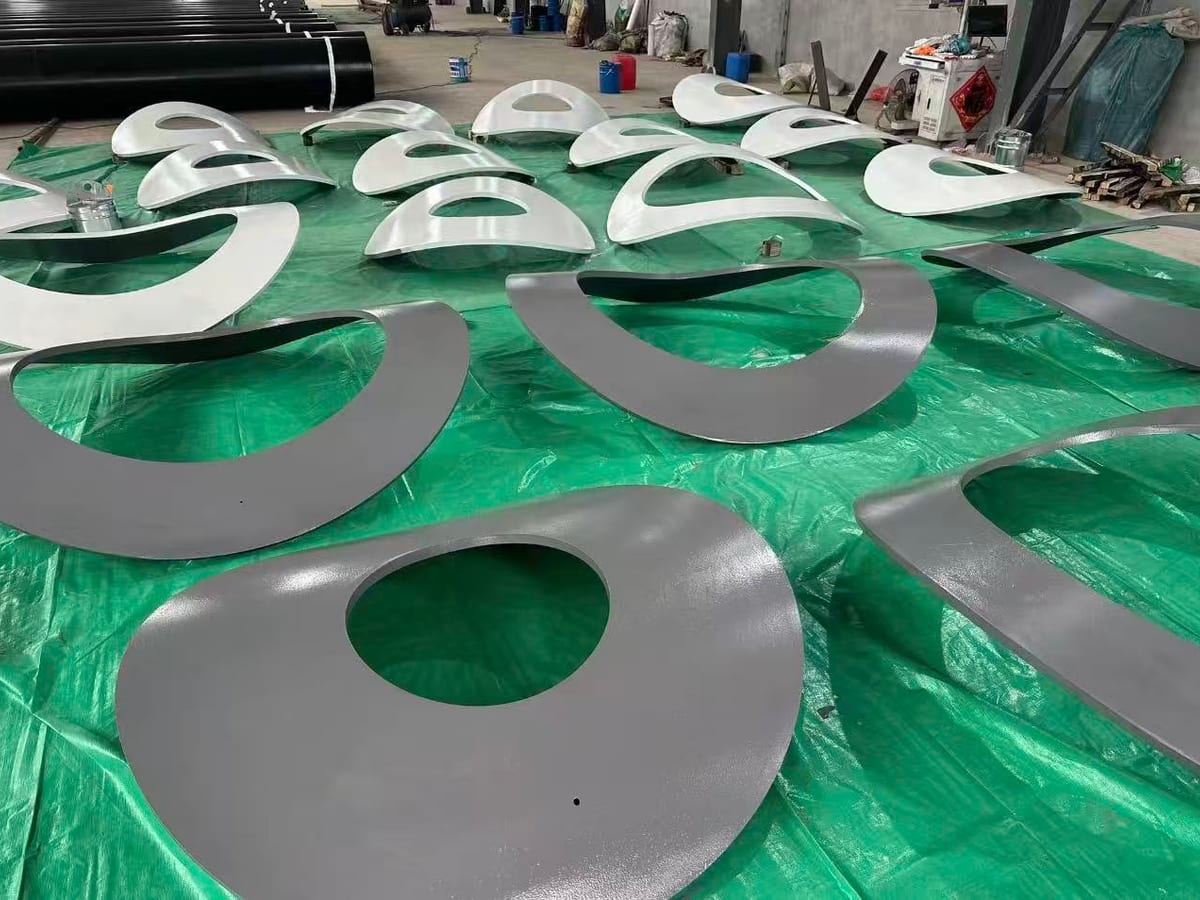

Branch saddle plates
Branch saddles and custom parts Made to drawing, including non-standard and special items
To drawing To drawing To drawing
Why buyers work with us

What you get on every order

Inspected before it ships

Tensile, impact, bend and hydrostatic testing, ultrasonic thickness measurement, spectrometric material verification and metallographic checks are carried out in our own laboratory.

Traceable paperwork

Material test certificates to EN 10204 3.1, dimensional and inspection reports, packing list and commercial invoice. Markings on the goods tie back to the heat number.

Consolidated from one works

Fittings, forged fittings, flanges, caps and pipes on one order and one set of documents, which keeps clearing and site delivery simpler.

Drawing-driven orders

Send a drawing, a size list or a take-off and we quote item by item, including non-standard dimensions and special coatings or packing.

Quality control

Standards we work to

Every batch is checked against the standard it was ordered to, and the results travel with the goods.

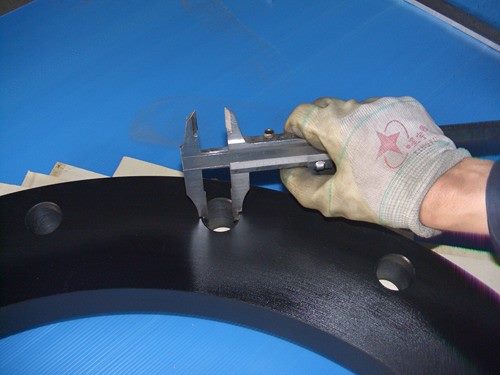

Measuring a fitting on the shop floor
Dimensional check and wall thickness measurement on the shop floor.

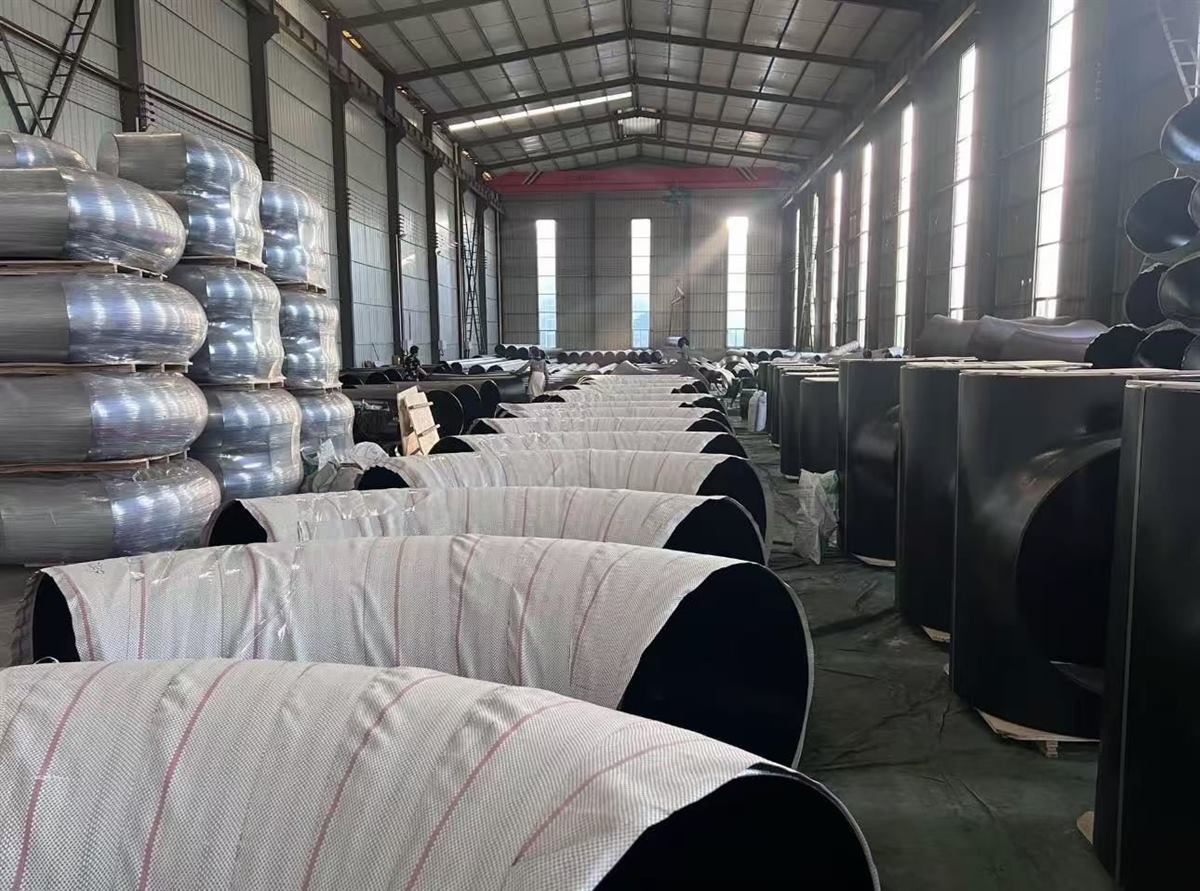

Fitting production workshop
Fitting production and finishing, Yanshan, Hebei.

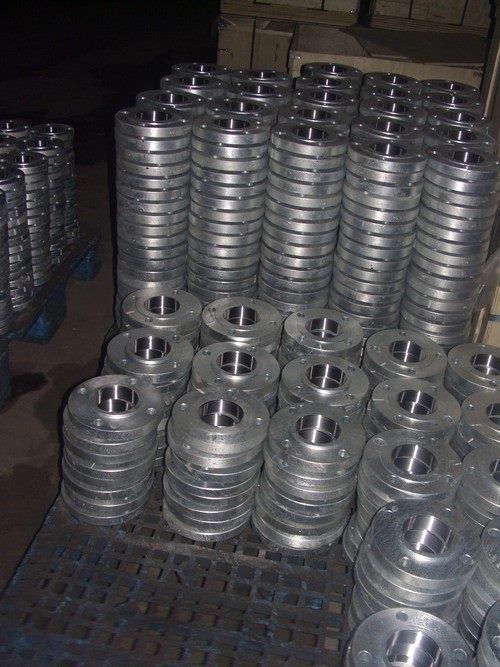

Hot-dip galvanized fittings in the yard
Coated and galvanized stock, packed for export.
See inspection and certificates
Contact

Ask for a quotation

Send the sizes, standards and quantities. We reply with item-by-item pricing and the documents you will need for the order.

  • CompanyHebei Renlong Pipe Fittings Co., Ltd.
  • AddressYanta Road, Yanshan County, Cangzhou, Hebei 061300, China
  • ContactXiang Zhang — Sales Manager
Open contact page
